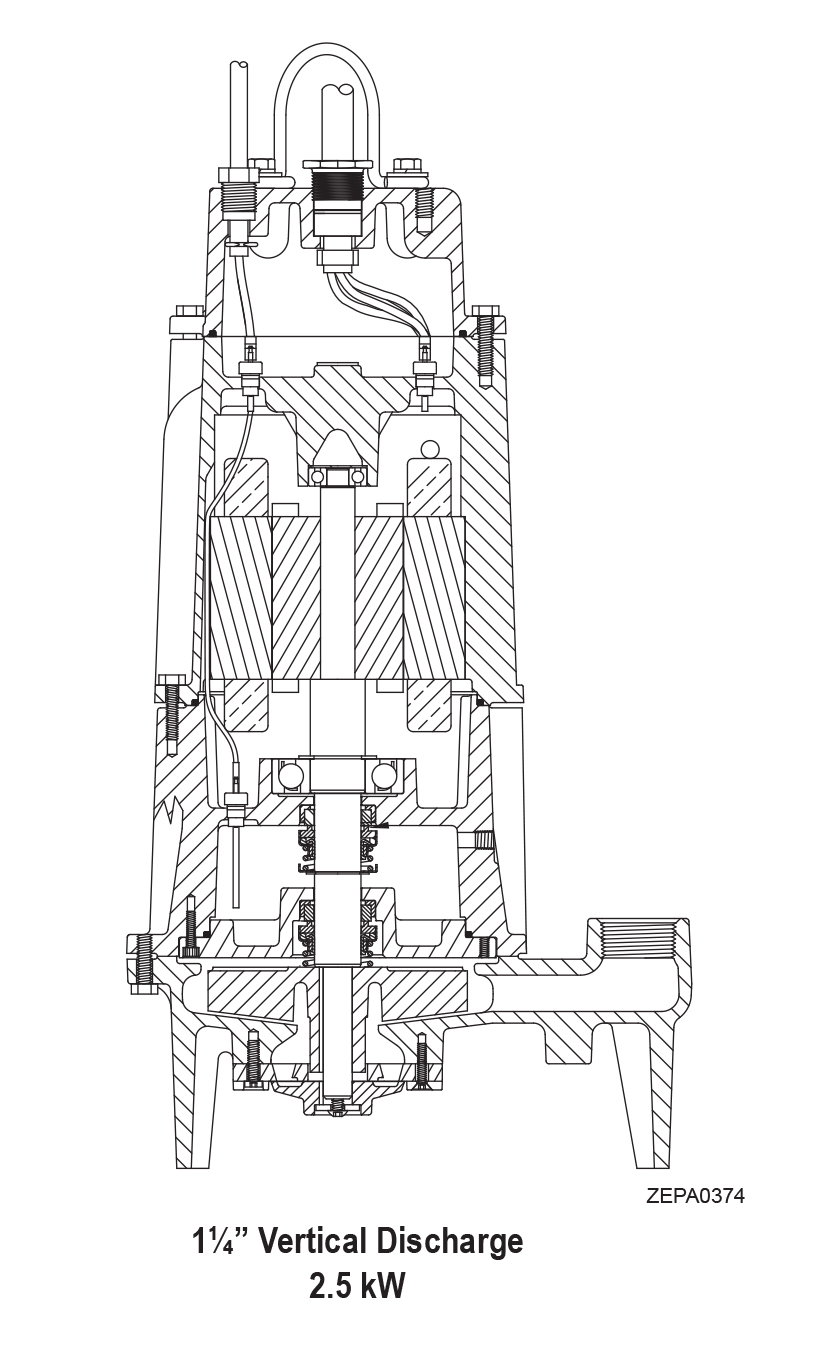

70 SERIES GRINDER, 2.5 KW

Zoeller engineered pumps are unique in the way they can be adapted to suite many different applications and requirements. Adding a different impeller, or impeller trim, Seals or sensors. The combinations are almost endless for your specific need and with a short manufacturing time of 1 week.

APPLICATIONS:
• Pump stations
• Housing developments
• Pressure sewers

FEATURES:
• Cast iron support legs for free-standing applications
• Stainless steel lifting bail
• Protective cutter ring helps extend cutter life
• Cast iron construction with corrosion-resistant, baked-on epoxy powder coating
• Patented moisture-detection system with upper and lower probes
• Concentric pump housing with centerline discharge reduces radial loading

PUMP PERFORMANCE CURVES - 70 Series

71 SERIES GRINDER, 3.2 - 5.3 KW

Zoeller engineered pumps are unique in the way they can be adapted to suite many different applications and requirements. Adding a different impeller, or impeller trim, Seals or sensors. The combinations are almost endless for your specific need and with a short manufacturing time of 1 week.

APPLICATIONS:
• Sewage lift stations
• Housing developments
• Low pressure sewer systems
• High vertical lift or long force mains

FEATURES:
• Protected cable entrance with compression grommet that allows for field-replacement of cable
• Individually-sealed conductors for elimination of cord wicking liquids
• Lifting lug integral part of housing
• Thermal sensor and moisture-detection system with upper and lower probes
• Cast iron construction with corrosion-resistant, baked-on epoxy powder coating

PUMP PERFORMANCE CURVES - 71 Series

Download Product PDF

Zoeller Engineered Pumps Range

V7011 AK7011 V7012 AK7012 V7013 AK7013 AK7110 AK7111 AK7112

v7011 ak7011 v7012 ak7012 v7013 ak7013  ak7110 ak7111 ak7112
