UV-C Master Blaster

• Deactivation of bacteria, viruses and other micro-organisms
• Municipal drinking water treatment equipment
• Municipal waste water treatment equipment
• Process water treatment equipment
• Swimming pool units
• Aquaculture units
• Agriculture units
• Equipment for the production of ultra-pure water, for example for the semiconductor, pharmaceuticals and cosmetics industries.

• HDPE reactor
• Variable design and dimensions on request
• 316L Stainless steel lamp connections
• Flanged connection
• 100% draining
• High performance amalgam low pressure UV lamp 325W each
• Electronic ballasts
• Lamp operating indicator light, lamp alarm indicator light and alarm contact
• Digital lifespan indicator for UV-C lamp UV sensor at 254 nm

• High quality of manufacture and high disinfecting performance
• Use of amalgam low pressure lamps to achieve required performance levels irrespective of the temperature of the water (particularly cold water)
• Dedicated electronic ballasts guaranteeing maximum lamp UV efficiency and integrated control

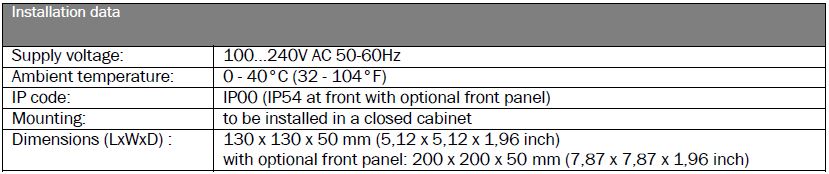

 UV Control Unit ZCON mini

Out-of-the-box control unit

• UV-C monitoring

Status indication:

• Multicolour LCD
• Green, red and yellow LEDs

Status forwarding / remote operation:

• Remote start input
• 4-20mA signal input (e.g. flow meter or dimming using analogue PLC)
• 4-20mA signal output (e.g. UV or Dim value forwarding to PLC)
• 3 switching outputs (status indication or remote switching)

XClear UV-C Master Blaster (500kb)
